AGS is the industry leader in the automotive aftermarket for steel brake, fuel, and transmission lines. Combining only the highest quality components, AGS manufactures steel lines that lead the automotive aftermarket in quality, coverage, and fill-rate. The entry-level replacement line in the AGS brake line category is still an excellent choice for aftermarket fluid transfer line repair and replacement. The steel lines and tubing are constructed with safety and longevity in mind. The tubing is produced by wrapping copper-coated steel around itself twice to form the tubing. This double-wall tube is what provides the strength and structural integrity to withstand the extreme pressures required, yet still remain pliable enough to be formed and bent to the shapes required to be routed beneath the vehicle. The finished tube is fused and zinc-coated to provide excellent rust and corrosion resistance as well. The AGS Standard Steel line has been the choice of professional installers/mechanics and do-it-yourself mechanics for many years. When properly installed, the standard steel line can provide a long-lasting repair or replacement for many types of vehicles and for all types of fluid transfer systems, including braking systems. However, when a vehicle is expected to see harsh environments like snow, road treatments, salt air, etc...on a regular basis or when the longest replacement life is required; other AGS premium lines like Poly-Armour and NiCopp should be considered. - Excellent Resistance to Rust and Corrosion - DOT Approved for Hydraulic Brake Systems - Bends and Forms without Kinking - Available in Coils of 25ft - Finished Lines Available for Domestic and Import. Standard Steel lines and tubing meet the following specifications: SAEJ527b, GM123M, SAEJ1290, DIN 74234

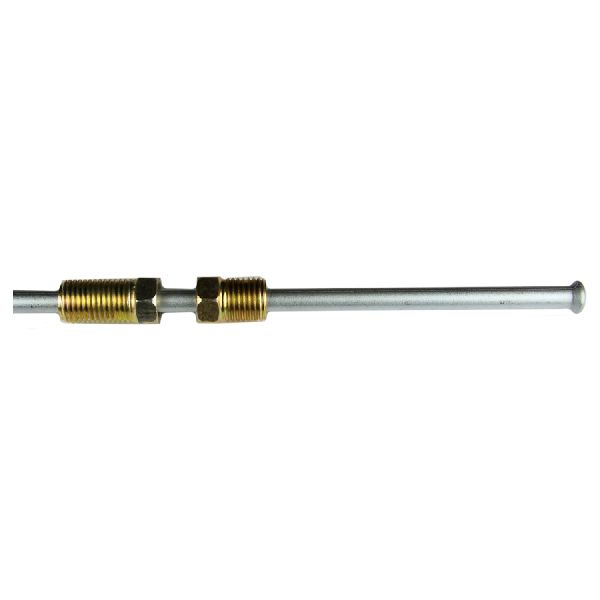

- Domestic Steel Brake Line, 3/16 x 51
P311-55B9DDE BL-351 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Domestic Steel Brakeline
- Two tube nuts for an accuate tight fit.
- Pre-Flared
- Bendable: Yes
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: 3/8 - 24
- End 1 Thread Diameter (in): 3/8 - 24
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: 3/8 - 24
- End 2 Thread Diameter (in): 3/8 - 24
- Fitting Finish: Zinc Dichromate
- Fitting Type: Tube Nut
- Inside Diameter: 3/16
- Line Length: 51
- Line Material: Steel
- Outer Spring: No
- Outer Wear Guard: No
- Polyvinyl Fluoride Coated: No

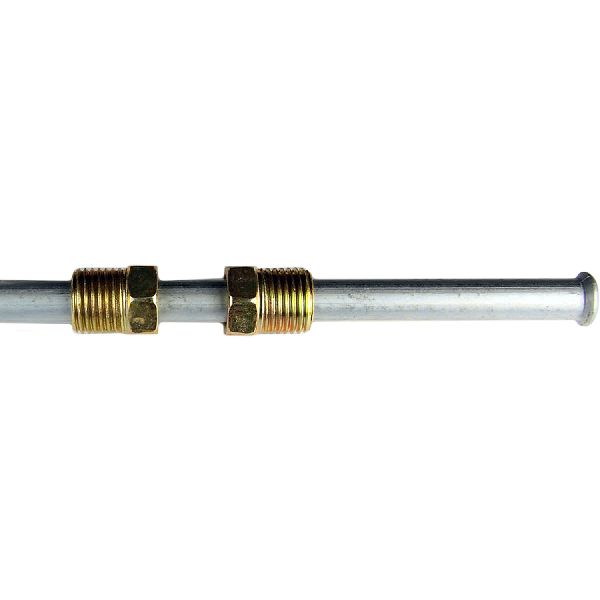

- Domestic Steel Brake/Fuel/Transmission Line, 5/16 x 51
P311-30FAA3F BL-551 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Domestic Steel Brakeline
- Two tube nuts for an accuate tight fit.
- Pre-Flared
- Bendable: Yes
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: 1/2 - 20
- End 1 Thread Diameter (in): 1/2 - 20
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: 1/2 - 20
- End 2 Thread Diameter (in): 1/2 - 20
- Fitting Finish: Zinc Dichromate
- Fitting Type: Tube Nut
- Inside Diameter: 5/16
- Line Length: 51
- Line Material: Steel
- Outer Spring: No
- Outer Wear Guard: No
- Polyvinyl Fluoride Coated: No

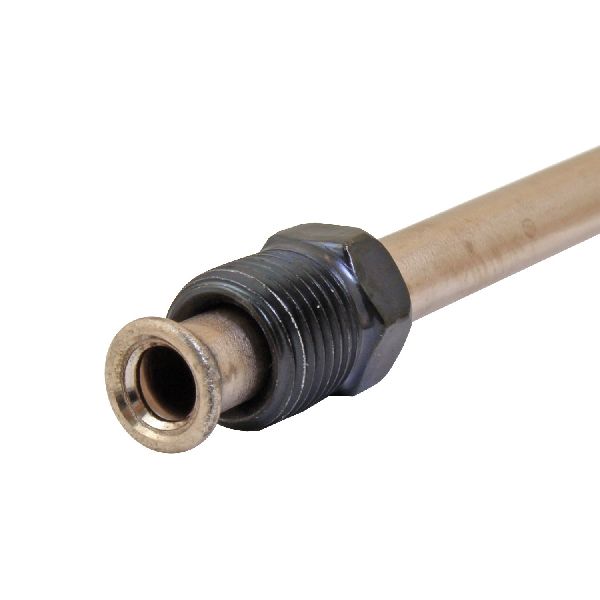

- NiCopp Nickel/Copper Brake/Fuel/Transmission Line Tubing Coil, 5/16 x 25ft
P311-0656D09 CNC-525 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- By AGS — the industry leader in brake, fuel, and transmission lines
- Manufactured from a nickel-copper alloy containing approximately 9.2% nickel and 88.6% copper
- Bends 58% easier than steel tubing for faster, cleaner installations
- Considered a premium choice for vehicles exposed to road salt, humidity, or off-road conditions
- Will not rust or corrode, even in the harshest underbody environments
- Ideal for brake, fuel, and transmission line replacement
- Matches the strength and structural integrity of steel while offering superior corrosion resistance
- Meets ASTM B111 specifications for material quality
- Compatible with hydraulic and fluid transfer systems across automotive platforms
- DOT-approved for use in hydraulic brake systems
- Bending Method: Tubing Bender Suggested
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- Fittings Included: No
- Length (ft): 25
- Material: Nickel - Copper
- Tube Outside Diameter (in): 0.313
- Tube Outside Diameter (mm): 8
- Sil-Glyde Silicone Lubricant, Tube, 4 oz
P311-124FFB8 SG-4 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Sil-Glyde Lubricating Compound
- For all surfaces, including: rubber, metal, wood, glass, and plastic.
- Will not melt, freeze, gum, or run off
- Performs from -20 deg F to +400 deg F.
- Will not drip.
- Harmless to rubber and car finishes. Suggested applications: Trunk seals, rubber bumpers, speedometer cables, brake parts, window channels, hood strips and pads, rubber gaskets, and belts.
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- Color: Opaque
- National Grease Lubricating Institute Specification: No
- Synthetic: No
- Working Temperature Range: -20 To 400f

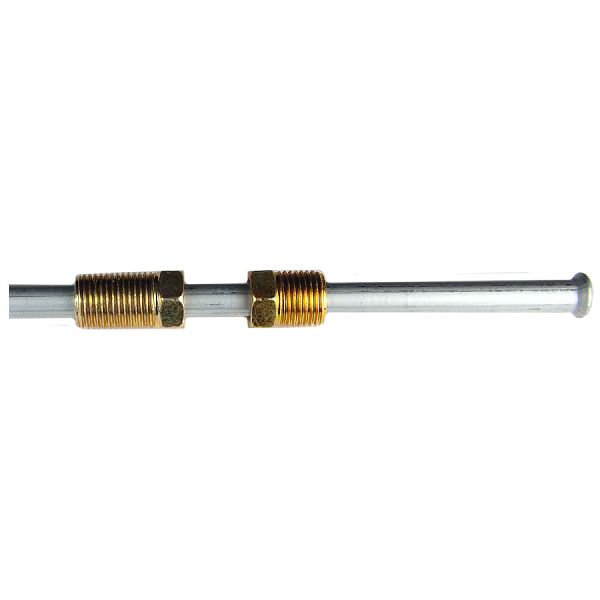

- Domestic Steel Brake Line, 1/4 x 30
P311-42F91E4 BL-430 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Domestic Steel Brakeline
- Two tube nuts for an accuate tight fit.
- Pre-Flared
- Bendable: Yes
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: 7/16 - 24
- End 1 Thread Diameter (in): 7/16 - 24
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: 7/16 - 24
- End 2 Thread Diameter (in): 7/16 - 24
- Fitting Finish: Zinc Dichromate
- Fitting Type: Tube Nut
- Inside Diameter: 1/4
- Line Length: 30
- Line Material: Steel
- Outer Spring: No
- Outer Wear Guard: No
- Polyvinyl Fluoride Coated: No

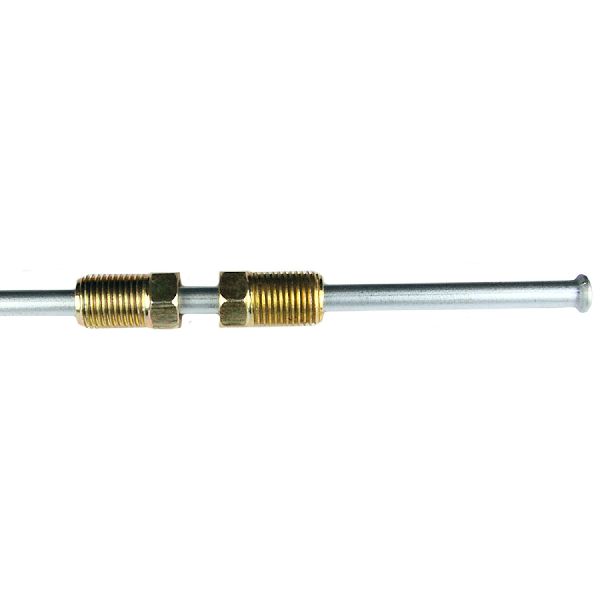

- Japanese Steel Brake Line 3/16 x 40
P311-1B2C929 BLJ-340 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Japanese Steel Brakeline
- Two tube nuts for an accuate tight fit.
- Pre-Flared
- Bendable: Yes
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: M10x1
- End 1 Thread Diameter (mm): M10x1
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: M10x1
- End 2 Thread Diameter (mm): M10x1
- Fitting Finish: Zinc Dichromate
- Fitting Type: Tube Nut
- Inside Diameter: 3/16
- Line Length: 40
- Line Material: Steel
- Outer Spring: No
- Outer Wear Guard: No
- Polyvinyl Fluoride Coated: No

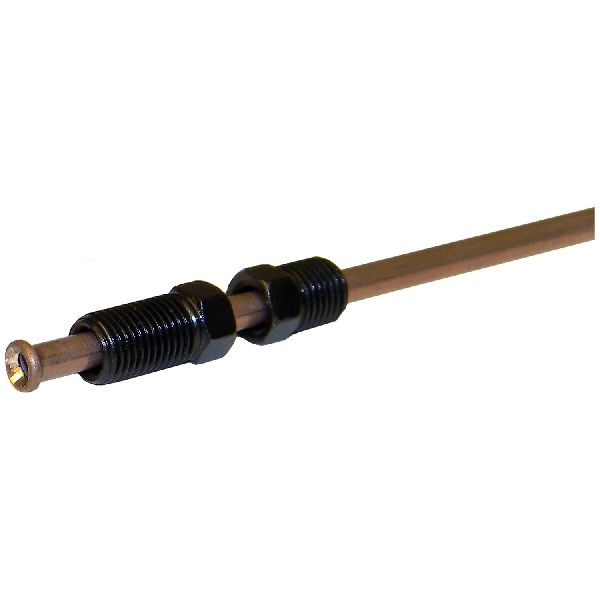

- Domestic NiCopp Nickel/Copper Brake Line, 3/16 x 40
P311-58F3840 CN-340 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- By AGS — the industry leader in brake, fuel, and transmission lines
- Manufactured from a nickel-copper alloy containing approximately 9.2% nickel and 88.6% copper
- Bends 58% easier than steel tubing for faster, cleaner installations
- Considered a premium choice for vehicles exposed to road salt, humidity, or off-road conditions
- Will not rust or corrode, even in the harshest underbody environments
- Ideal for brake, fuel, and transmission line replacement
- Matches the strength and structural integrity of steel while offering superior corrosion resistance
- Meets ASTM B111 specifications for material quality
- Compatible with hydraulic and fluid transfer systems across automotive platforms
- DOT-approved for use in hydraulic brake systems
- 3/16" diameter
- Finished lines comes with black oxide coated tube nuts with thread: 3/8-24
- Black oxide has 2x corrosion resistance to zinc-plated or plain steel fittings
- Bendable: Yes
- Bending Method: Bending Tool Not Required
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: 3/8 - 24
- End 1 Thread Diameter (in): 3/8 - 24
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: 3/8 - 24
- End 2 Thread Diameter (in): 3/8 - 24
- Fitting Finish: Black Anodized
- Fitting Type: Male
- Fittings Included: Yes
- Inside Diameter:
- .1875
- 0.1875
- Line Length: 40
- Line Material: Nickel - Copper
- Domestic Steel Brake Line, 1/4 x 8
P311-35A6152 BL-408 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Domestic Steel Brakeline
- Two tube nuts for an accuate tight fit.
- Pre-Flared
- Bendable: Yes
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: 7/16 - 24
- End 1 Thread Diameter (in): 7/16 - 24
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: 7/16 - 24
- End 2 Thread Diameter (in): 7/16 - 24
- Fitting Finish: Zinc Dichromate
- Fitting Type: Tube Nut
- Inside Diameter: 1/4
- Line Length: 8
- Line Material: Steel
- Outer Spring: No
- Outer Wear Guard: No
- Polyvinyl Fluoride Coated: No
- Domestic Steel Brake/Fuel/Transmission Line, 5/16 x 60
P311-19E0FD0 BL-560 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Domestic Steel Brakeline
- Two tube nuts for an accuate tight fit.
- Pre-Flared
- Bendable: Yes
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: 1/2 - 20
- End 1 Thread Diameter (in): 1/2 - 20
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: 1/2 - 20
- End 2 Thread Diameter (in): 1/2 - 20
- Fitting Finish: Zinc Dichromate
- Fitting Type: Tube Nut
- Inside Diameter: 5/16
- Line Length: 60
- Line Material: Steel
- Outer Spring: No
- Outer Wear Guard: No
- Polyvinyl Fluoride Coated: No

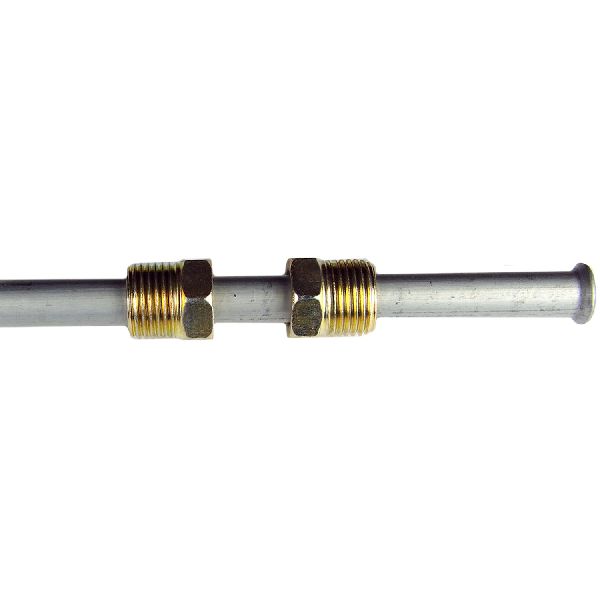

- Domestic Steel Brake/Fuel/Transmission Line, 3/8 x 20
P311-5CF2360 BL-620 AGS Brake Lines New
This product is not application specific
This is a general purpose item, or a universal product, or requires additional fitment checks for your vehicle, outside of year, make, and model.
-
Features:
- Domestic Steel Brakeline
- Two tube nuts for an accuate tight fit.
- Pre-Flared
- Bendable: Yes
- Warning Cancer And Reproductive Harm - Www.p65warnings.ca.gov
- End 1 Flare Type: Inverted
- End 1 Thread Diameter: 5/8 - 18
- End 1 Thread Diameter (in): 5/8 - 18
- End 2 Flare Type: Inverted
- End 2 Thread Diameter: 5/8 - 18
- End 2 Thread Diameter (in): 5/8 - 18
- Fitting Finish: Zinc Dichromate
- Fitting Type: Tube Nut
- Inside Diameter: 3/8
- Line Length: 20
- Line Material: Steel
- Outer Spring: No
- Outer Wear Guard: No
- Polyvinyl Fluoride Coated: No
